Atari CX52Joystick Solid Gold!
The problems with the Atari 5200 CX52 Joysticks have been well known for years by Atari 5200 console owners (Mushy left and right Fire Buttons that go bad, Start-Pause-Reset buttons that go bad (can not start the 5200 game) and internal CX52 Controller Flex Circuits that fail). If you found five used Atari CX52 controllers (like on E-Bay), each would have a different problem like Start buttons would not work, Left or Right or both fire buttons would not work, Controller cursor would not go all of the way left or right or up or down, Cursor shakes badly during the 5200 Super Breakout game or something is stuck inside the CX52 controller and the CX52 handle binds up. Atari CX52 Controllers put away working 2 to 10+ years ago working fine, would go bad with no use at all. New Atari Stock replacement CX52 Joystick controllers right out of the new box (sat in the Atari Sunnyvale warehouse for 2 to 6+ years) would have a very high failure rate. Even rebuilt Atari CX52 Joysticks using new Atari OEM Carbon Dot replacement stock internal silicon pads and internal Flex Circuits would with normal use, would only last 2 to 3 years between rebuilds before they would again go bad and have to be rebuilt again.
Since Atari Engineering designed the Atari CX52 Joystick some 20 years ago, Nobody except Best Electronics has done anything to improve on these problems on this Very Popular Atari Joystick.
After working on this project for over 6 months Best Electronics is proud to announce that we now releasing the Final answer to all Atari 5200 Joystick Owners problems. Now in stock is a complete set of New replacement Atari CX52 Joystick Silicone pad sets that now have All Gold Metal Contacts. To enhance these New Lifetime CX52 Gold Silicone Pad sets: Auxiliary Key pad (Start-Pause-Reset), Fire Buttons and Numeric Key pad), Best Electronics is also pleased to release a Gold Plated Rev. 9 Flex Circuit. For more information on the Best Electronics Gold Dot Auxiliary Keypad with better tactical feed back, the 1st Upgrade to the Atari CX52 Joystick released by Best Electronics a couple of years ago, click on the Best 5200 URL button
The benefits of all Gold contact surfaces have been known by the Electronics industry for years. Most high end Computers, Electronic Test Equipment and Military Spec. Electronic Equipment use Gold plated switch contacts / connectors and Gold plated printed circuit boards for Better Reliability, Low or No contact / circuit resistance and Non Corroding Non Tarnishing metal in Rough and Harsh environments. Any Atari CX52 Joystick installed with these new Best Silicone Pads with Gold contacts and Gold plated Rev. 9 Flex Circuit will just about last forever contact wise!
New Gold Silicone Pad Information.
Atari was one of the First companies in the world to use Silicone contact pads with carbon dot contacts in their Joysticks on a mass-produced product. Back some 20 years ago, the Silicone pad technology was in is infancy stages back then and little was known about life expectancy, carbon contact materials, contact designs / sizes and how long Silicone pad contact pads would even last. Old Atari CX52 Joystick owners can tell you how many different feeling (Mushy) and design changes the Atari CX52 Fire buttons went thru to try and cure their known problems over the years.

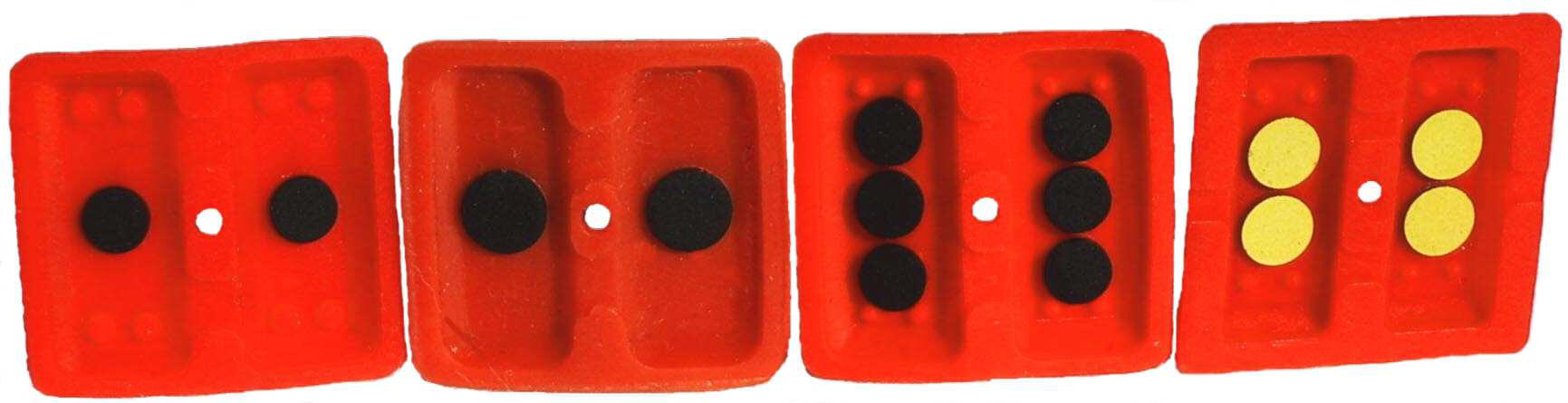

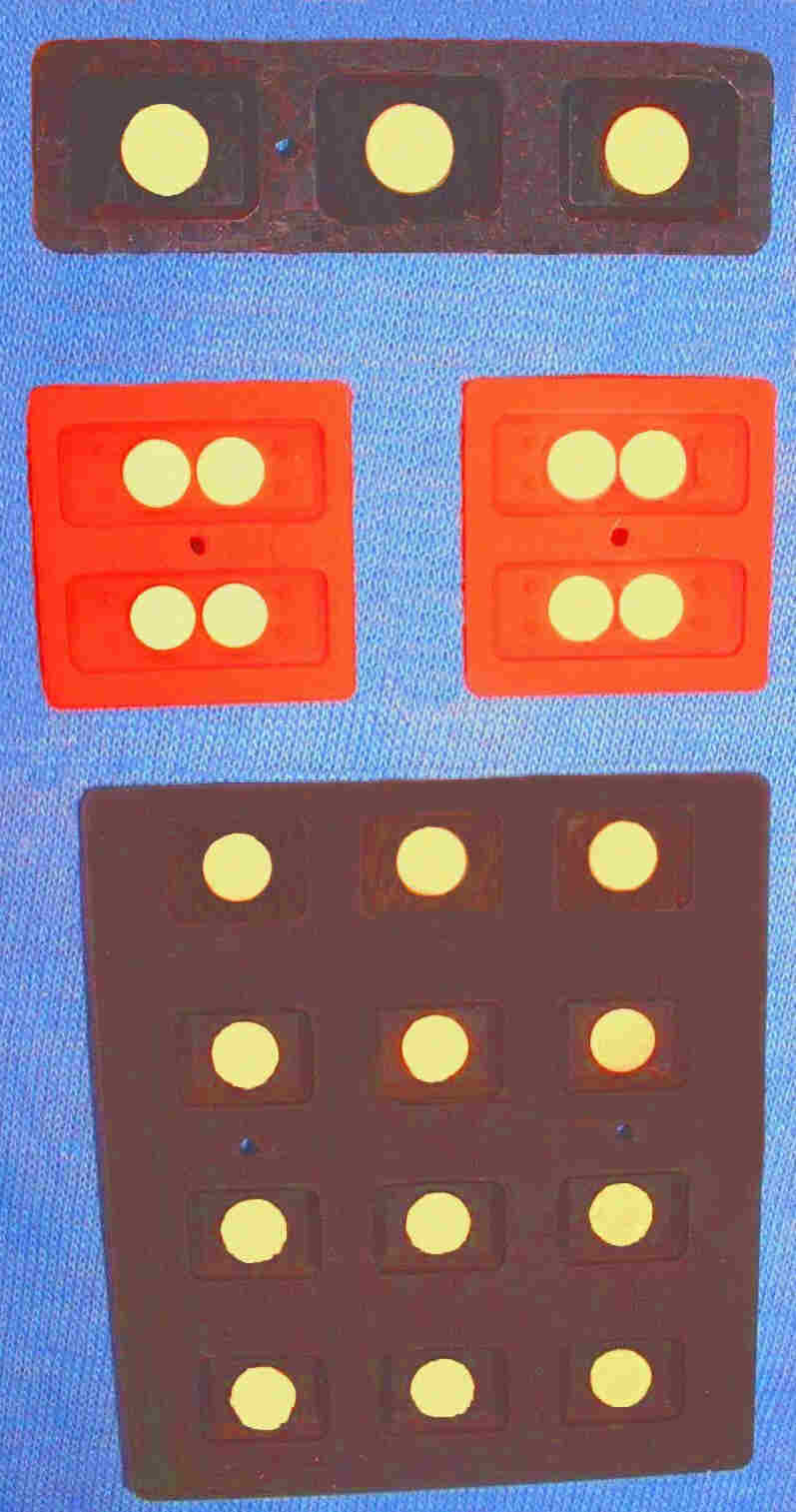

The All New Best Gold Silicone CX52 Fire buttons have two Major Improvements. Each New Best Molded Orange CX52 Fire button, now has two side by side 4.5 mm Gold metal contacts (slightly longer than the mating Rev. 9 Flex Circuit mating contact surface interlocking “E” Grids) for the Top and Bottom sections of the Fire button, for a Grand Total of Four Gold metal contacts per Orange Fire button.
The Second Major Improvement to the all New Gold Best Electronics CX52 Orange Fire button has a Lighter but Firmer / Crisper feeling Fire Button now with a New State of the Art Tactical Feed back feature. Now each time you press on the firm Improved Best Gold dot fire button, as you release the Atari CX52 fire button, it will bounce back and give your finger a Tactical response telling you the fire button as been Pressed and Released. In a Side by Side comparison, the older series of Atari CX52 Orange fire buttons compared to the New Best Lifetime CX52 fire buttons with Gold contacts are a Night and Day Tactical difference. Mush with no Tactical feed back Vs State of the Art Tactical fire button Feed back.

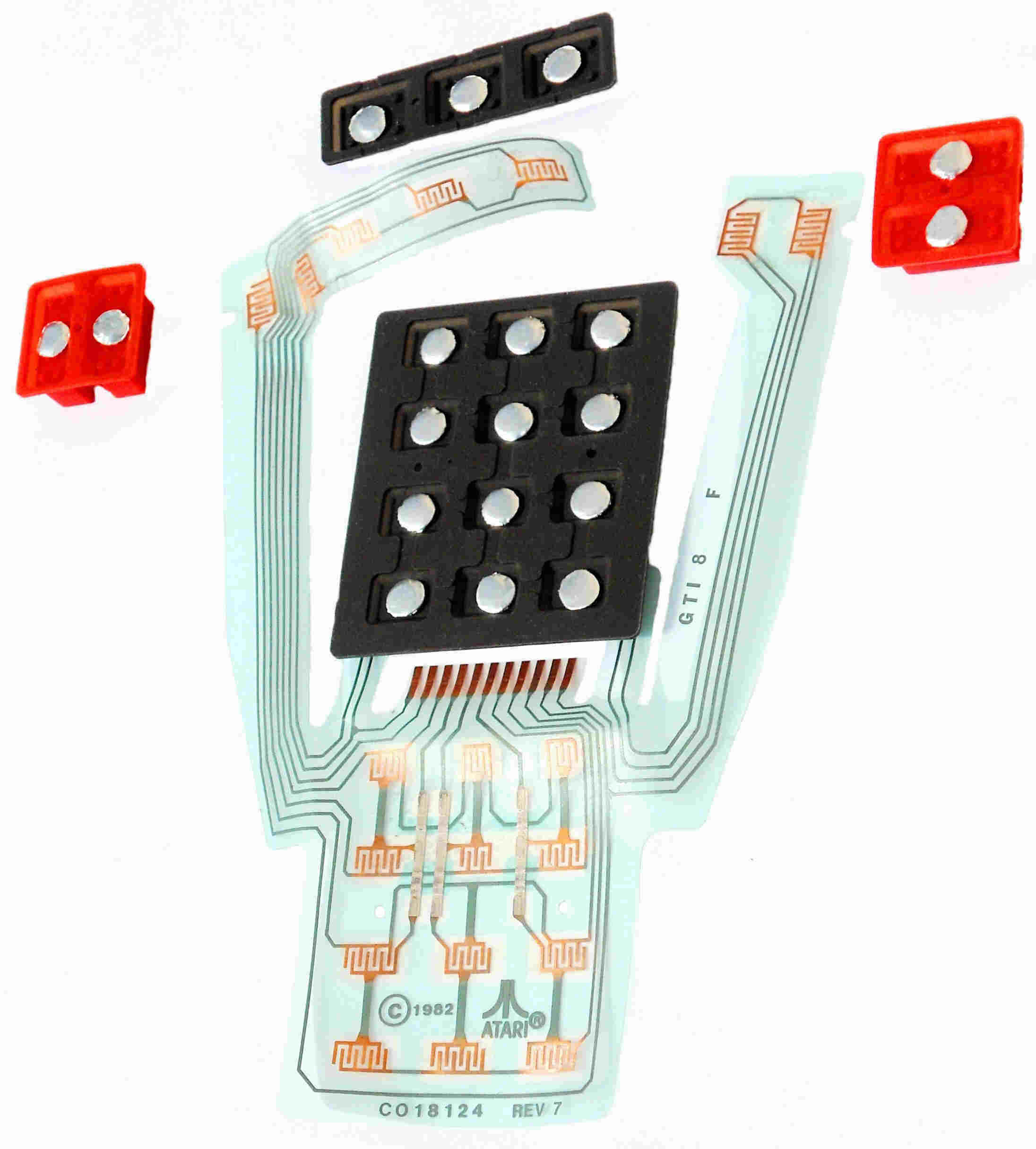

On the New improved / Upgraded Gold Dot CX52 Numeric Keypad, Now has Twelve 5 mm Gold Dot metal contacts. These 5 mm Gold metal contacts are some of the largest contacts ever used on any of the Atari CX52 Replacement Joystick Numeric Keypads produced over the last 20 years.
The New Best Gold Dot CX52 Keypad also has the improved feel with the Tactical Feed back feature. You can now visually tell a Standard Atari CX52 Numeric Keypad from the New Best Gold improved lifetime version (and our Best Upgraded Rebuilt CX52 Joysticks) by the New Gold Colored Silk screened numbers on the numeric keypad.
What do these New improved CX52 Gold Dot parts do for a Standard stock Atari CX52 Joystick?
A Stock Atari CX52 Joystick fitted with Best’s Gold Auxiliary Keypad, both Gold Fire Buttons, Gold numeric Keypad and Gold Flex Circuit, in theory should be the Last set of Atari CX52 Silicone contact pads you will ever have to install in your Atari CX52 Joystick. Thus eliminating the two Major known failure rates of Atari CX52 5200 Joystick for the last 20 years, Non-Working Fire Buttons or can not start the 5200 Game (bad Auxiliary Keypad)
Of course, this assumes your Atari 5200 Motherboard Joystick Ports are electronically up to Factory specifications. A 5200 motherboard with weak Joystick port electronics could still have some Contact / Life Expectancy problems with an All Gold Silicone pad fitted CX52 Atari 5200 Joystick.
So now, my Atari CX52 Joystick fitted with all Gold contract pads should now be a Lifetime Atari CX52 Joystick?
In theory, the Best Gold CX52 Joystick Silicone pads should last the useable life of the CX52 Joystick. Each New CX52 Gold Dot Silicone replacement pad is rated by our Manufacture for over 300,000 actuation cycles per Silicone pad. Although it is possible to physically wear thru the silicone pads top surfaces (and we have seen some rare cases of wear holes thru the tops of the silicone pads on old exchanged CX52 Joysticks over the last 19 years) after hundreds of thousands of cycles of use, Most Atari 5200 CX52 Joystick owners will never have to replace their CX52 Silicone contact pads again.
In the real world, you may have to still replace the Atari CX52 Joystick handle Rubber Boots, Potentiometers and Cables as they possibly ware out after many years and years of normal use.
What are the Costs of the New Best CX52 All Gold Joystick Silicone pads?
The New Improved Best CX52 Gold Fire buttons are $5 per fire button (2 per controller). CO20501-G (New Gold Fire buttons are sold as a matched set of 2 Gold fire buttons with one Gold Numeric Keypad)
New 2nd Generation late 2012 design Gold Fire buttons with Tactical feed back feature. CO20501-GT $7 per fire button (New Gold Fire buttons are sold as a matched set of 2 Gold fire buttons with one Gold Numeric Keypad). For more information on the new 2nd Generation Gold Dot fire buttons click here.

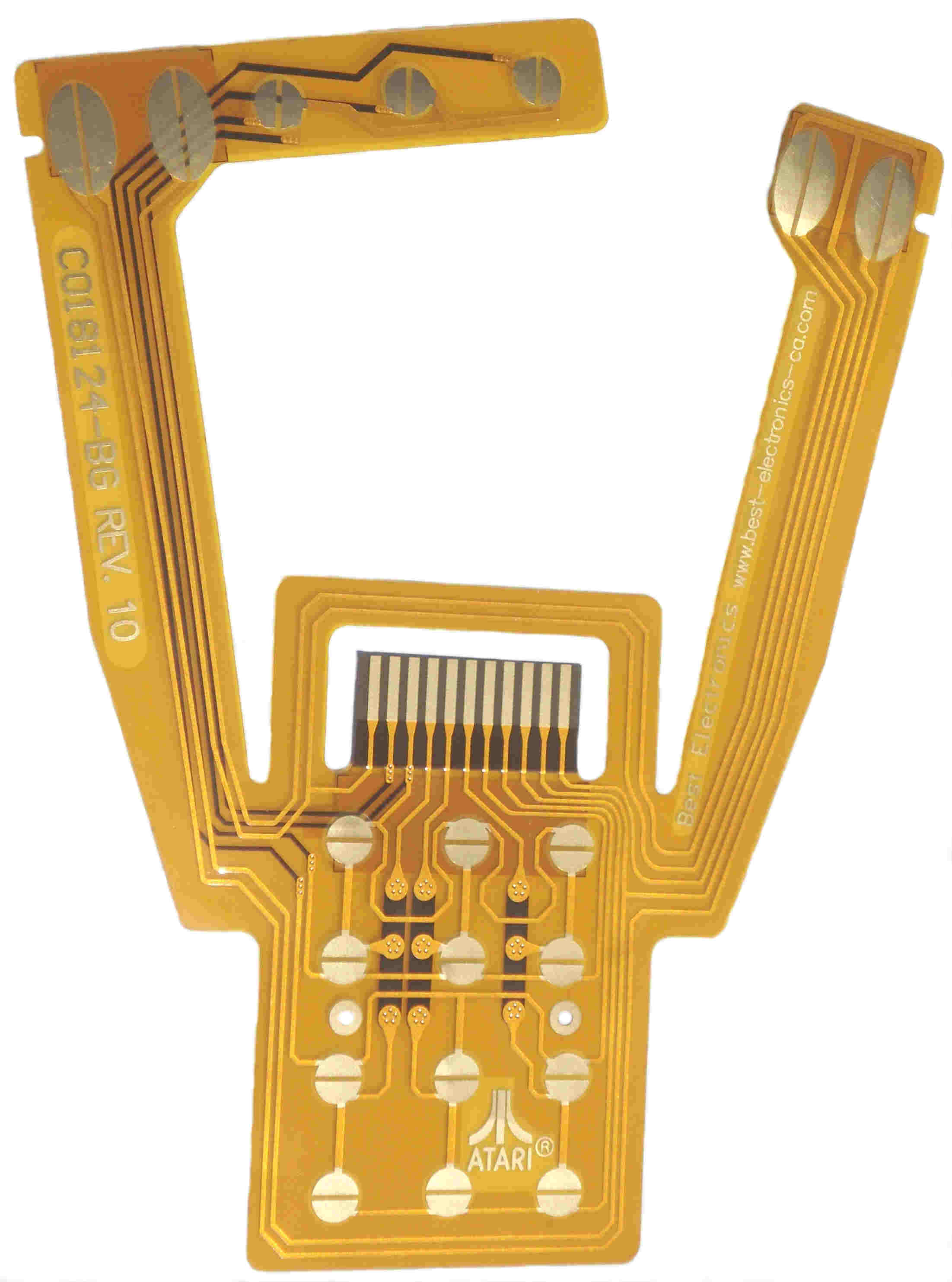

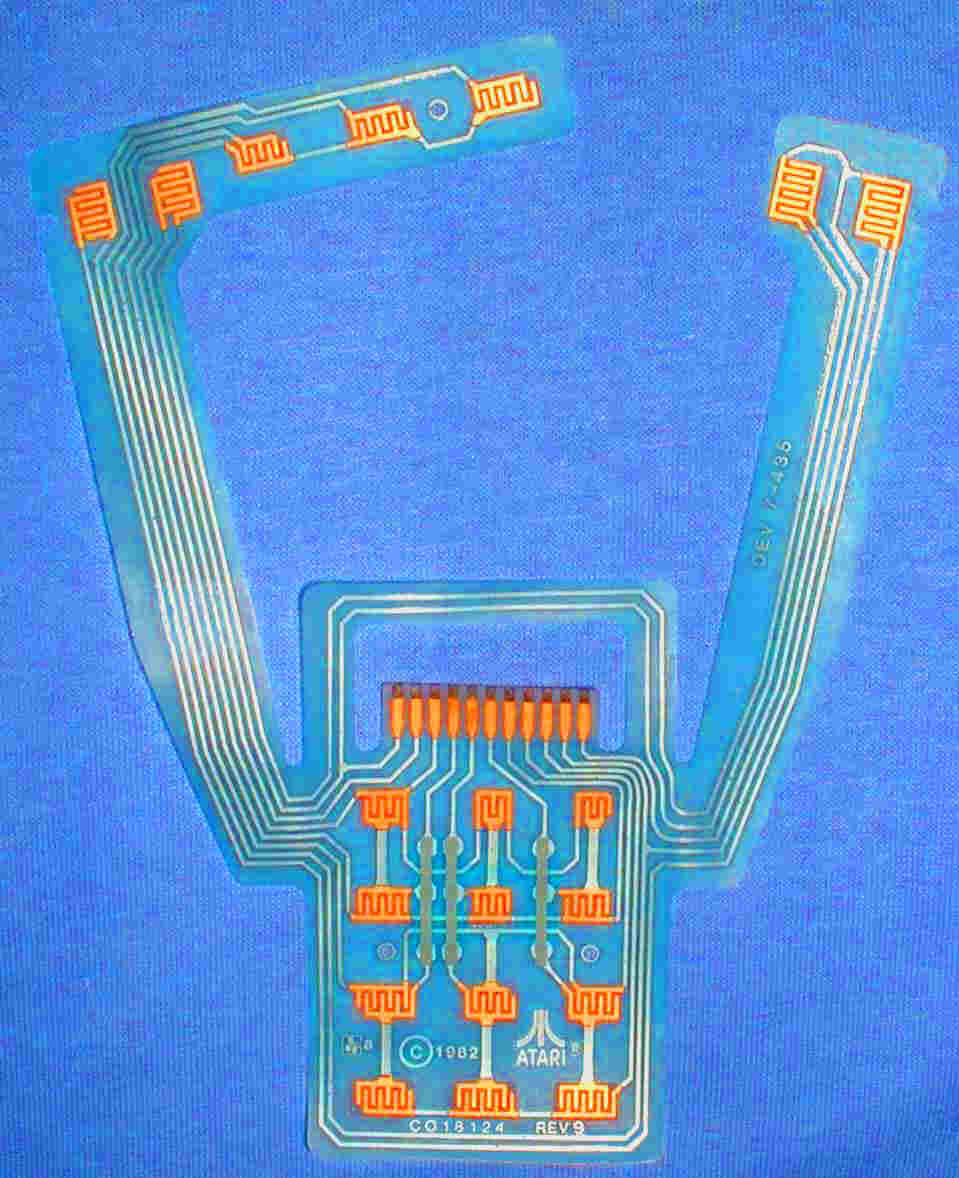

The Gold Plated Rev. 9 Felix Circuits are $13.50 each. CO18124-G
The price of Gold has tripled since our last production run of Gold plated Rev. 9 Flex Circuits. We have no choice but to raise the cost of the Upgraded Gold plated Rev. 9 Flex Circuits and also limit the Qty per Customer to 2 Gold Plated Flex Circuits for now.
The Gold Numeric Keypad are $6 each. CO18126-G
The Gold Auxiliary Keypad are $5 each. CO18128-G
Fortunately all of the other Best New 1st generation Gold dot CX52 replacement parts were bought in large enough Qtys (production runs), we do not have to raise any of other New CX52 Gold dot part prices until we have to reorder them again, sometime in the future.
Because of the Very High cost of the New tooling Molds to make the above New Improved / Upgraded / Lifetime Atari CX52 Joystick Gold version Silicone Pads, the Gold Fire buttons (2 each) will be sold with a Gold version numeric keypad as a matched set of 3 Only, until further notice.
I installed a couple sets of your New Atari Gold upgraded CX52 Joysticks Silicone Pad sets and Flex Circuits. I notice that the upper left New fire button does not have the same excellent New Tactical Feed back feature as compared to the lower fire button.
With the new sets of improved Best CX52 Silicone pads with Gold contacts, it is Critical that the Flex Circuit be re-glued flat to their back mounting plates (under the Numeric keypad by the Flex Circuit Hump and left / right fire buttons). We find rubber cement (instead of Atari used double sided clear tape) works very well on holding the New Gold Flex Circuits flat against their Mounting plates. On the Old Rev. 9 Flex Circuits and Triple Dot fire buttons (and other versions), the Flex Circuits could float between the bottom of the Fire button pad and mounting back plate and still function OK. With these Mushy Fire buttons, you would Never notice the difference. On all of the Atari CX52 Joysticks made, you will find that the Top left fire button will not have the exact same new Tactical feel as compared to the right top fire button. This is because of a lack of Internal Plastic Support / backing behind the flex circuit as it passed thru to the top case assembly. The Top left fire button bottom rectangular support pad is only supported on three sides instead of the normal 4 sides. Another way you can double check this, is to reverse the left Gold Dot fire button 180 degrees in its fire button bezel, reinstall. You will find that the bottom fire button now has the Good Tactical feed back and the Top Fire button now has less tactical feedback.
I notice that the top row of numbers (1 – 3) on my freshly rebuilt CX52 with Lifetime Gold Dot Silicone Numeric keypad do not have the same excellent tactical feel as the others.
Assuming you have Glued down the Rev. 9 Gold Flex Circuit to the top of the internal numeric Keypad support plate, Yes you will notice that the Top Row numbers (1 – 3) on the Gold Dot numeric Keypad will not have the same exact new tactical feed back. This is because of the fixed internal design of the CX52 Keypad internal support plate. This support plate has a top rounded edge and does not give enough support (three sides instead of 4 on each 1 – 3 number push pads) to the New Gold Dot numeric Silicone pad along the very top edge. This is not noticeable on the older design carbon dot Mushy CX52 numeric keypad pads, but is on the upgraded Gold Dot Keypad.
Will you still carry the Standard Atari 5200 CX52 Joystick Carbon dot replacement Silicone Pads and Stock Flex Circuit parts?
Yes! Click on the Best 5200 URL below to see a list of normal Atari 5200 OEM replacement parts we carry. (Scroll down to the end of this article to see parts listing with current prices)
I am not mechanically inclined and do not want to try to rebuild (or do not have any cores CX52 to exchange) my old Atari CX52 Joystick(s). What are your prices for your Best Reconditioned Standard and Upgraded with Lifetime Gold Dot Silicone pads Atari CX52 Joysticks?
Standard Best Electronics reconditioned Atari CX52 Joystick with new Stock Carbon dot Silicone pads $21 (Exchange / sent in Core Required*)
Standard Best Electronics reconditioned Atari CX52 Joystick with new Stock Carbon dot Silicone pads $27 (Out right buy, No Exchange / No Core required)
Upgraded Best Electronics Atari CX2 Joystick with New Lifetime Gold Metal Dot Silicone Pads and Gold Flex Circuit $32 + Gold Surcharge (Exchange / Core sent in required*) $37.00 each
Because of the current high cost of Gold we had to add a $5 surcharge to each Gold Upgraded Reconditioned Atari CX52 Joystick to cover the raising cost of Gold plated Rev. 9 Flex Circuits.
Upgraded Best Electronics Atari CX52 Joystick with New Lifetime Gold Metal Dot Silicone Pads and Gold Flex Circuit $38 + Gold Surcharge (Out right buy, No Exchange / Core required) $43.00 each
Best Reconditioned / Upgraded Atari CX52 Gold Dot CX52 Joysticks with the new 2nd Generation Tactical feed back Gold dot fire buttons are $47 each without exchange CX52 cores sent in, $41 each with exchange CX52 core(s) sent in plus return Shipping and Insurance. Click here to read about the New late 2012 2nd Generation tactical feed back Gold fire buttons
*Exchanged Core / used CX52 Joysticks must have all of the Stock plastic parts, with no cuts or damaged cables. Missing or damaged Silicone pads / boots is OK.
What is the US Shipping charge on Exchanged or Out right buys on Best’s Reconditioned CX52 Joysticks?
We have a Flat rate shipping charge for US / Domestic shipped Atari CX52 reconditioned Joysticks. $11.15 Priority Mail plus $2.45 Insurance for 1 or 2 CX52 Joysticks. California Residents must add their local CA Sales tax to the total. CA sales tax is based on the CX52 Controller(s) cost only (not on insurance or shipping). Click here for Best's ship to Information.
International Atari Customers E-Mail
us at email@example.com for shipping Reconditioned / Upgraded CX52 Gold Joysticks or Bests Gold CX52 parts to your International location.
How do I order some Upgraded Atari CX52 Joystick(s) with the new Lifetime Gold dot pad sets?
If you have some CX52 Joystick Core(s) you want to exchange, then box them up (no padded bags) drop in a personal check (see above costs) and a note with your ship to address and phone number. We recommend you send them to us (Best Ship to address on first web page) Priority Mail with Delivery Confirmation.
you do not have any CX52 Cores to exchange and want to out right buy some
freshly Rebuilt / Upgraded CX52 Joystick, you can Call In (phone hours on first
web page) a Credit Card order or arrange (Via
at firstname.lastname@example.org) a different payment method.
Joe S. of MN "Thanks again for your assistance with calibrating my Atari 5200 console." Joe had exchanged out some old non working Atari CX52 Joysticks for Best Reconditioned CX52 Joysticks. When Joe received the Best Reconditioned CX52 Joysticks, he was having some problems with one of the two Best reconditioned CX52 Joysticks he had received. We explained to Joe that all Atari CX52 Joysticks Bests reconditions are tested on Atari Factory consoles that are calibrated to Atari 5200 Engineering Spec's using Atari 5200 Diagnostic hardware. During the Best reconditioning process, each reconditioned Atari CX52 Joystick is tested on several different Atari 5200 Consoles using several different Atari 5200 Game Cartridges and then are put into our stock. Just before the Reconditioned CX52 Joysticks are sent out, they again go into our Atari Tech's area to be again tested on Factory spec Atari 5200 consoles. We explained to Joe, that we have found over the last 25+ years selling Atari CX52 Joysticks, that some of the Atari 5200 consoles have electronically drifted off the Atari 5200 Factory Joystick port settings, casing the one reconditioned CX52 Joystick problem Joe was having. We explained that we can help Joe do the minor internal setting adjustment over the phone within his 5200 console to get his one Best CX52 Joystick problem corrected. "Controllers are working great! Kids and I are having a blast! Thanks"
What is the usual Turn around time on the exchanged Reconditioned CX52 Joysticks?
On Phone orders for Non Exchange CX52 Joysticks, they are usually shipped the next working day.
On Exchanged CX52 Joysticks sent in, they are usually shipped within one or two working days after we receive your CX52 Core(s) from you.
What do you normally replace on your Best Reconditioned / Upgraded CX52 Joysticks?
Because of our vast Inventory of Atari CX52 Joysticks OEM replacement parts in stock, Best Electronics 100% replaces the following CX52 Joystick parts on every Atari CX52 we have rebuilt for the last 24+ years:
Both Left and Right Orange fire buttons
Auxiliary Keypad (Start, Pause, Reset)
Joystick Rubber Boot
Controller Name plate
3 CX52 Case screws
Other parts that get replaced on an “as required” basis per rebuilt CX52 controller:
Controller Potentiometer rings
Controller Potentiometer arms
Bottom Actuator Plate
Controller Sliding Block
Joystick Rubber Boot retaining Ring
Best Electronics knew in late 2011 that we were going to run out of the New 2005 production run of the 1st generation of Atari CX52 Joystick Gold Dot fire buttons sometime in late 2012. So in an effort to continue to support the World Wide Atari 5200 owners with matched sets of CX52 Joystick Gold Dot Silicon pads that turn the old failing or bad Atari CX52 Carbon dot Joysticks into Lifetime upgraded Gold Atari CX52 Joystick controllers. So early in 2012 we started to work on the next generation Atari CX52 Gold dot fire button project.
At Best we are always trying to improve on the original Atari products (Composite Video out and OS upgrades for Atari 2600 and 7800 consoles, Gold CX40 Lifetime PCB boards which turn old Atari CX40 Joysticks into a lifetime Joystick, CX30 Replacement Super Pots that turn old worn out Atari Paddles into lifetime Paddles).
We felt that we could do one better on the next Generation Gold Dot CX52 Fire Buttons (which cured for ever the known 25+ year 5200 Joystick fire button failure problem, which thousands and thousands of Atari 5200 Joystick World Wide Owners have found out since 2005) when we started this new project. After close to 9 months of work on this new 5200 project, a brand New design CX52 Gold Dot Fire button mold ($,$$$) (we scraped out the 2005 new fire button mold, because it could not be upgraded to our new fire button design standards), and what seemed like hundreds and hundreds of new prototype samples of Rev. 2 Gold Dot CX52 Fire button samples Received and Rejected over and over. Best Electronics is now proud to announce the New 2nd generation CX52 Joystick Gold Dot Fire buttons with a New Tactile feed back feature!
Any old Atari 5200 owner can tell you CX52 Joystick carbon dot fire buttons went thru many changes over a 5 to 15 year period as Atari Engineering tried to fix many different CX5200 Joystick fire button problems. Small Carbon dots, Medium Carbon dots to Larger Carbon dots and toward the end, one set of triple small carbon dots on each top and another set of 3 carbon dots on bottom orange CX52 Fire button and so on. Also the feel (when the fire button was pressed and released) of each Carbon dot fire button changed over the years from mushy, to spongy and in the end neutral feeling Carbon dot CX52 fire buttons. All of these Atari Engineering CX52 Carbon dot Fire Button fixes, never cured the known CX52 Joystick fire button failures until the BestGold Dot Fire button final cure.
The New Best Tactile feed back CX52 Joystick Gold Dot fire buttons other New feature, is they now require more pressure to push them down (compared to the 1st Generation Best CX52 Gold Dot fire buttons), but not enough increased pressure as to fatigue your finger tips after hours and hours of 5200 Game play and when released have a New light bounce back finger tip tactical feed back. Something a kin to a high grade PC Keyboard or current State of the Art Video Game controller. Which when a Key cap or game controller button is pressed and released, the key cap or button bounces back and gives your finger tip a slight kick back, telling your finger tip the key cap or button has and been properly pushed down and released. Our Engineering prototype function and life cycle tests with the final version 2nd generation Gold Dot Fire buttons, depending on the different control group of CX52 Joystick testers and how the different tester pushed and released (fast, slow, rapid, angled push or straight on push) on the new Gold CX52 Fire buttons, a lot of the CX52 Joystick testers managed to get an audible Mechanical Click Sound out (like a mechanical switch, which is amazing considering the New tactical CX52 fire buttons are almost made of 95% Silicon rubber material) of the 2nd Generation CX52 Gold dot Silicon Fire buttons when pushed and released
When we designed and released the 1st Generation CX52 Gold Dot fire buttons in mid 2005, Gold was selling for $535 per ounce. In late 2012, Gold is now selling for around about $1,720 an ounce. Even thru the price of Gold has been going up and up in 2012, the New 2nd Generation Best Gold Dot fire buttons, now have over double the amount of Gold plating thickness on the 4 metal dots on each new Silicon fire button compared to the 1st Generation Best CX52 Joystick Gold Dot fire buttons.
Because of the Original Atari Engineering CX52 joystick bottom plastic case design (which has not changed over the total life span of all CX52 Joystick bottom plastic controller cases made) the upper CX52 Joystick fire button silicon pad does not have the same plastic back support around the bottom / base of the upper fire button to properly support it. You will find on the 2nd Generation Tactile Gold Dot fire buttons, only the bottom CX52 controller Gold fire button will have the New improved Tactile feed back feature and the top Gold fire button will have a reduced tactile feed back because of the lack of internal plastic support (CX52 bottom controller case) at the base of the top fire button Silicon pad area. You can feel / test this basic CX52 joystick top fire button design / support problem / difference by installing 2nd Generation Gold Dot Fire button in a CX52 Joystick bottom case. Press the bottom CX52 orange fire button and feel the tactile feedback and increased pressure to push it down. Now rotate that same bottom CX52 Joystick Fire button and brown plastic fire button bezel / holder 180 degrees into the top position and then reinsert back into to the CX52 bottom case (now the bottom Gold dot fire button is in the top CX52 Joystick position). You will now see that when the top fire button (which was the bottom fire button with good Tactical feed back) is pushed again, it does not have the same good Tactile feed back as compared to new bottom fire button. So this top fire button reduced tactical feed back problem is a design flaw in the basic Atari CX52 Joystick bottom case design, which was never corrected or even addressed by Atari Engineering, because at that time, Atari did not have any Carbon Dot fire buttons with any kind of Tactical feed back features back 25+ years ago. You will find that about 90 to 95% of the Atari and 3rd Party made 5200 game cartridges, only use the bottom Fire button.
The New cost for the 2nd Generation Best CX52 Gold Dot Fire buttons is $7 each (two per CX52 Joystick controller). Again each set of 2 new 2nd Generation Atari Gold Dot Fire buttons are sold as matched set of 2 Gold Dot Fire buttons with a New CX52 Gold dot numeric Keypad.
Best Reconditioned / Upgraded Atari CX52 Gold Dot CX52 Joysticks with the 2nd Generation Gold dot fire buttons are $47 each without exchange, $41 each with exchange CX52 core(s) sent in plus Shipping and Insurance
We have a small quantity of the 1st Generation CX52 orange Gold Dot Fire Buttons left in stock. When those sell out, Best Electronics will No Longer produce or sell the 1st Generation CX52 Gold Dot Fire buttons. At that point we will 100% switch over to only selling the 2nd Generation Gold dot fire button replacement upgraded parts and Reconditioned / Upgraded Gold lifetime CX52 Joysticks.
For more information, customer reviews and to see the original Information on the Best CX52 Gold Dot 5200 Joystick cure, click here or scroll up to the top of this 5200 page.
Limited supply on some 5200 Titles, some titles only one is in stock, sold and a first come first serve basis! We Suggest when placing orders for 5200 Cartridges, you always have a 2nd and 3rd choice of the same dollar value 5200 Game cartridge listed, in case your 1st choice has sold out. This allows us to process your order faster and Not have to issue Credits, Refunds or try to contact you by phone or mail.Atari Titles (Boxed) Berzerk, Centipede, Counter Measure, Defender, Galaxian, Jungle Hunt, Kangaroo, Missile Command, Moon Patrol, Pac Man, Qix, Real Sports Tennis, Real Sports Soccer, Star Raiders, Vanguard $15 ea. Ballblazer, Choplifter, Dig Dug $17 ea. Football, Joust, MS Pac Man, Pole Position, Space Invaders, Super Breakout $20 ea. Mario Bros., Pengo, Rescue on Fractalus $25 ea. Gremlins $50
Titles (Loose Cartridges, no Instructions)

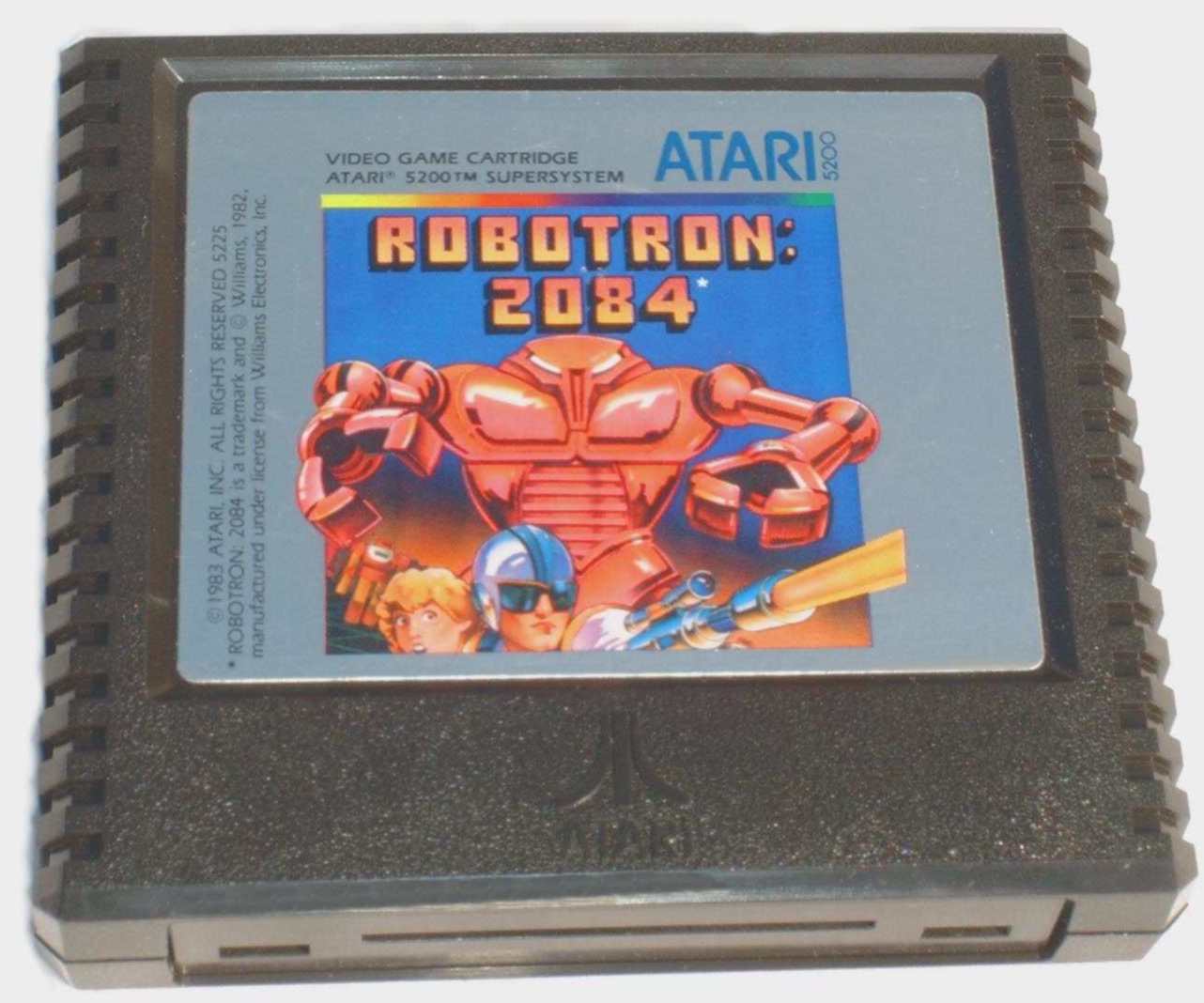

Breakout, Pac Man, Counter Measure, Moon Patrol, Baseball, Kangaroo, Berzerk,
Vanguard, BallBlazer, Space Invaders, Star Raiders, Mario Bros., Missile
Command, Dig Dug, Soccer, Jungle Hunt, Defender $10 ea. Joust, Ms Pac Man, Pengo, Pole Position, $15
Rescue on Fractalus $17
Gremlins with Manual, no box $25
Non Atari Titles (Cartridge with Photo Copy of Instructions)
Quest For Quintana Roo, A game where you search thru an Egyptian Pyramid for Treasures $29
Non Atari Titles (Boxed) Activisions Pitfall (Pitfall is for 4 Port 5200 models only), Space Shuttle (Simulator) $15 ea. Parker Bros. Super Coba, Activisions Zone Ranger $20 ea.
Non Atari Titles, Loose cartridges, no instructions (Poor or no Factory labels) Q Bert $8 ea

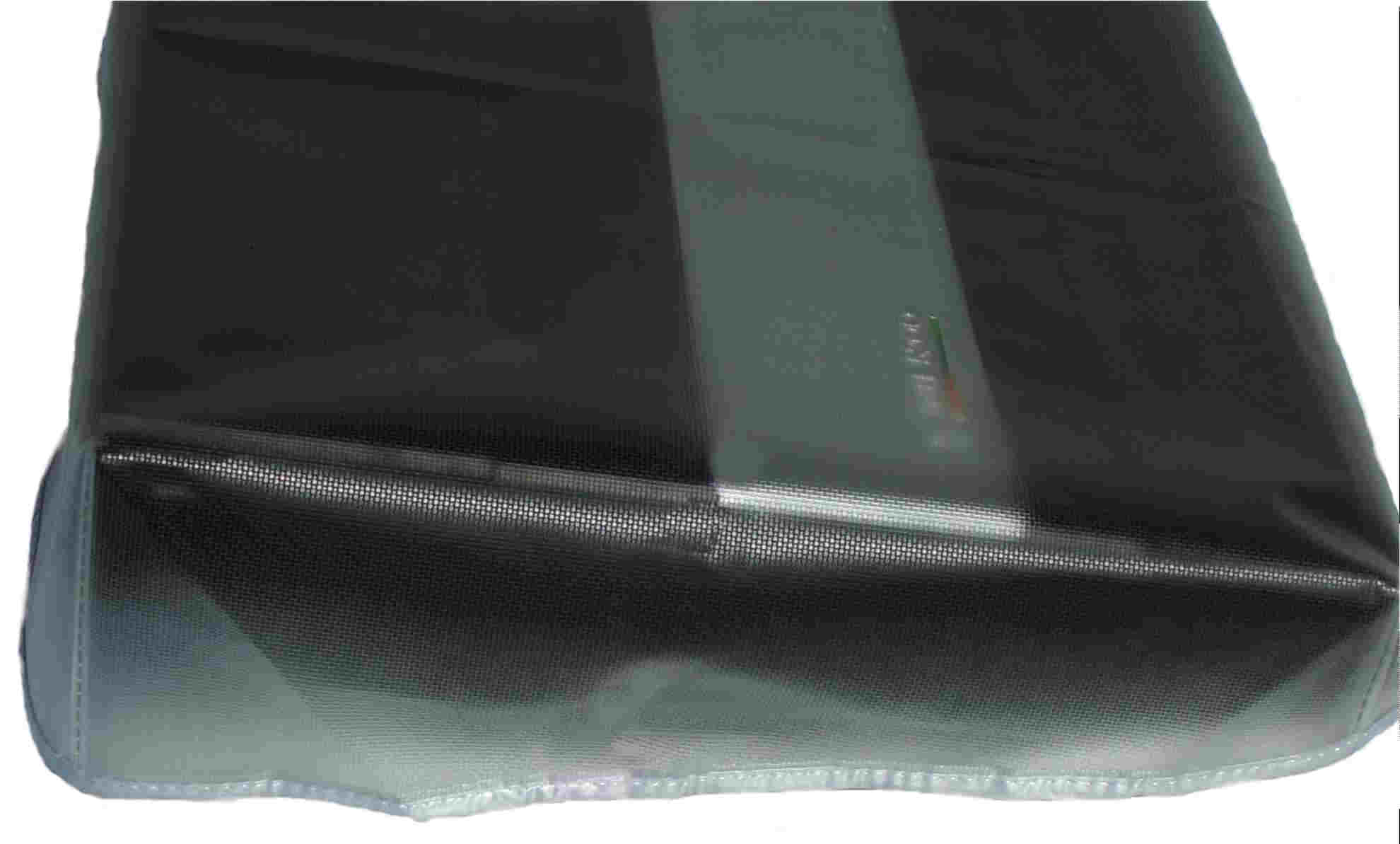

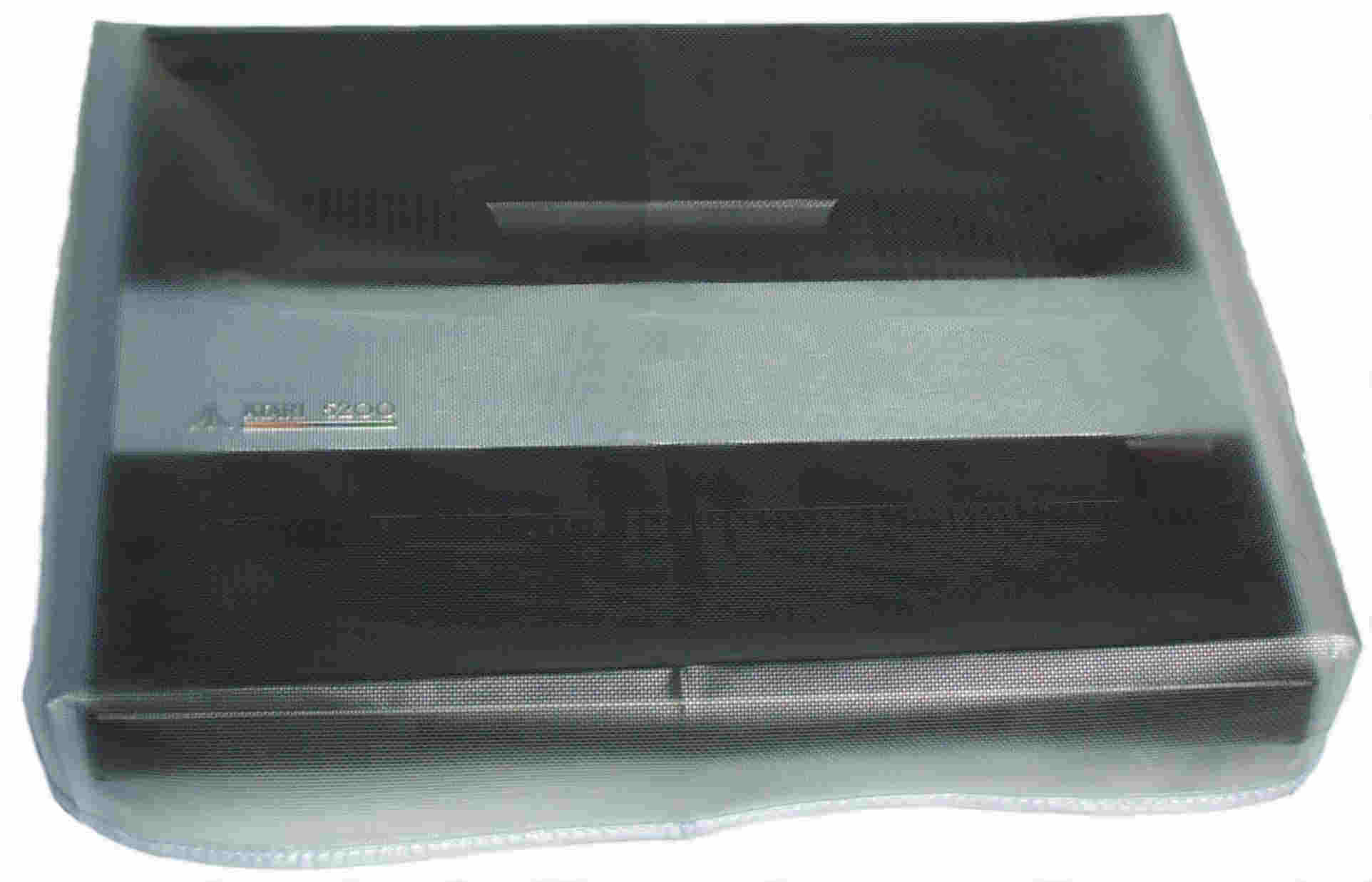

New translucent see thru Atari 5200 2 Port and 4 Port models Dust cover that has a custom tailored fit with reinforced edging around the base and a light surface texture. CB101066-T $12.95

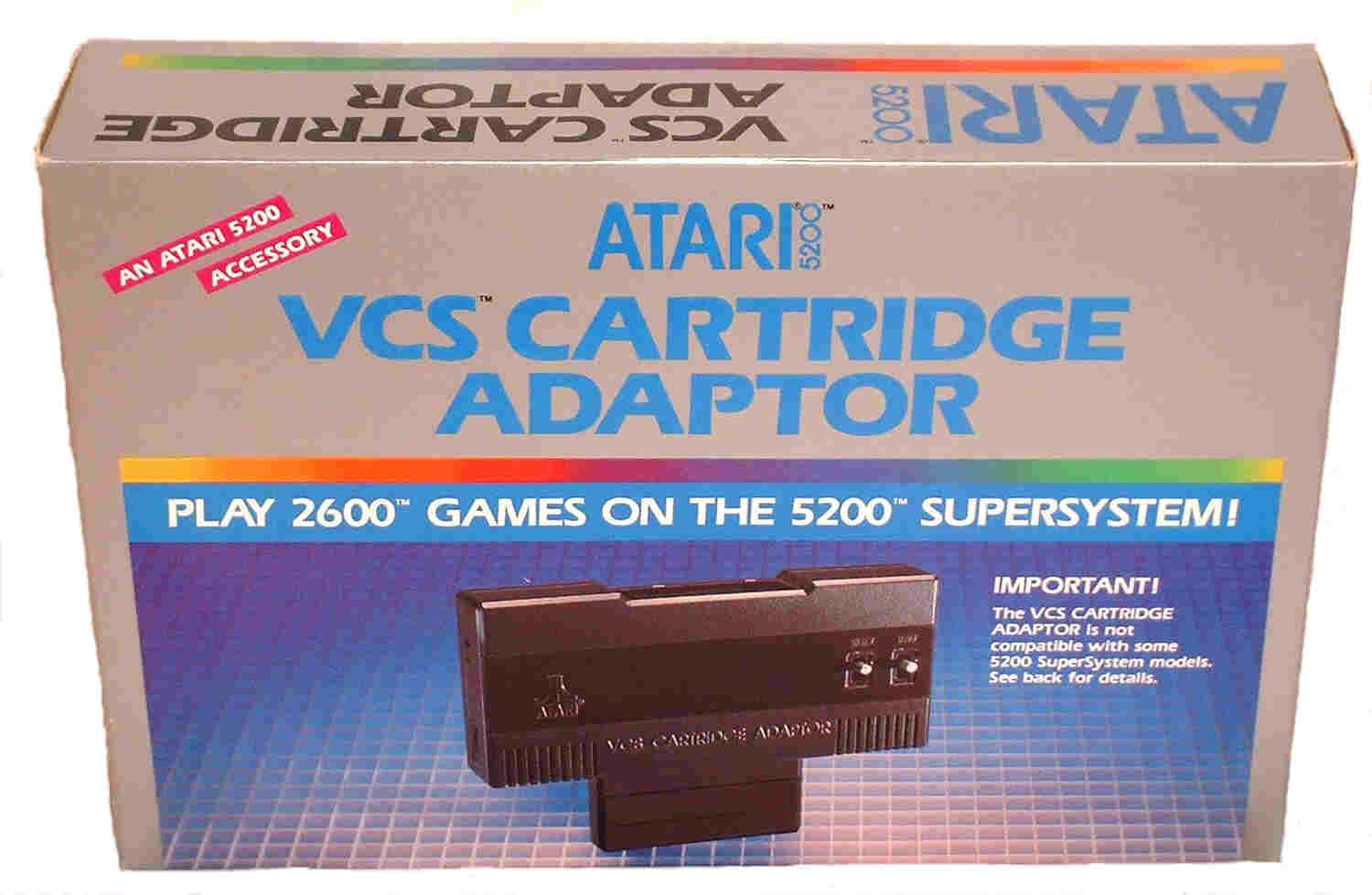

Atari 5200 CX55 "T" Shaped 2600 adapter for the Atari 5200 2 Port models. This Atari made adapter, is a complete self contained Atari 2600 unit that uses Power and View circuits of the Atari 5200 2 port console. You will have to use 1 to 2 Atari CX40 style Joysticks on the CX55 adapter. The Atari CX52 Joysticks do not work with the CX55 adapter. All you have to do, is plug in the CX55 adapter into your 5200 top cartridge port, install a 2600 game in the top of the "T" shaped CX55 and install one of two Atari CX40 joysticks on the sides of the CX55 and turn on your Atari 5200 2 port console. In 95 - 98% of the cases, this CX55 2600 adapter will NOT work with the earlier 4 Port model Atari 5200 Consoles. Most of the Atari 4 port 5200 consoles require an Atari 5200 4 port Electronic Retro fit kit installed (soldered in) before they will work with the CX55. CX55 $45.00

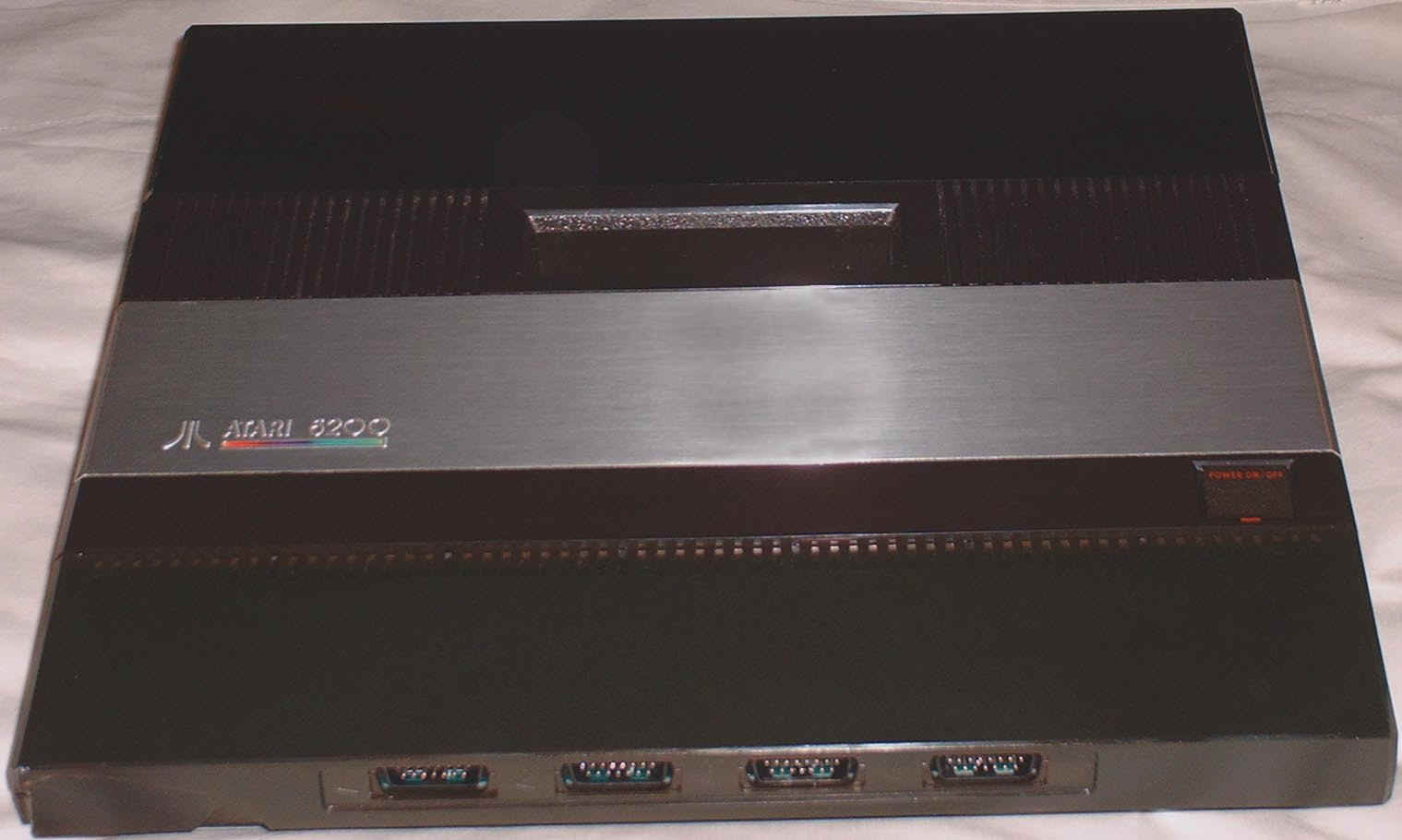

Atari 5200 4 port console Information Tip: The Atari 5200 4 Port (can insert up to 4 Atari CX52 Joysticks in the front) consoles use a custom made CX522 Atari Auto switching switch box unique to the Atari 5200 4 Port console only. (click here to see a picture of it) When you 1st see a 5200 4 port console, you will see the Heavy Duty RF cable (stores under the 5200 console bottom case), a channel 2 / 3 rear switch on the back bottom case, but no where on the Top or Bottom 5200 case set is there a 5200 Power Supply jack on the 5200 4 port console. The 5200 external Power supply is plugged into the Atari CX522 5200 4 port Custom Switch box which attaches to your TV / Display. When you push the On / Off button on the main 5200 4 port console, the 5200 Power is sent from the Custom Atari 5200 TV Switch box down the single 5200 RF cable to the 5200 console to power it and the 5200 RF TV signal is sent back up the same RF cable to the TV switch box. So you did not have move the mechanical slide switch lever (Game Console or TV positions) on most older mechanical TV switch boxes of that vintage. This Atari design 5200 Auto Switching TV Switch box was about 10 to 15 years ahead of its time. Other newer vintage Game consoles used a similar auto switching TV switch box about 10 to 15 years after Atari 5200 innovation and it became an Video Game industry standard on just about all video game consoles now. One of the more common comments we hear from 5200 4 port new and getting back into the 5200 4 port consoles, is when I put the 5200 Power Supply connector into the CX522 Custom TV Switch box, I saw a large spark between the end of the 5200 Power Supply barrel connector and the Mating Power Supply connector on the CX522 Atari 5200 Custom TV switch box. This happens because the 5200 CX522 Custom Switch box is trying to power up the 5200 motherboard circuits (but not turn it one) when you plug in the 5200 power supply connector. So you end up doing a live power connection, thus causing the spark you see. The proper way to connect up a 5200 4 port console, is to first make the RF connection (5200 Heavy Duty RF cable to the CX522 Auto switch box), next plug the Coax cable connector on CX522 TV Switch box to the TV / Display coax in connection, next the 5200 Power Supply barrel connector to the 5200 CX522 Custom Switch box without the other end of the 5200 Power supply (110V) plugged into the wall socket. The very last thing you do is to plug the Atari 5200 Power supply connector into the 110V wall socket. This way you avoid getting the large spark between the 5200 Power supply barrel connector and the Custom Atari 5200 CX522 4 port TV switch box connector and possibly damaging it!
